What Causes Unexpected Tooling Costs in Silicone and Plastic Manufacturing?

The first source is incomplete product information. A drawing may show the outside dimensions but not clearly define material, hardness, surface texture, tolerance, logo treatment, assembly method, or critical functional areas. Silicone products are especially sensitive to compression, deformation, parting-line location, and material flow. Plastic housings may require attention to draft angles, ribs, bosses, snap fits, wall thickness, and ejection.

The second source is design revision after tooling has begun. Once steel or other tooling materials have been machined, changing the product geometry may require additional machining, EDM work, inserts, polishing, welding, or even a mold rebuild. A tooling cost control strategy should therefore treat design review as a commercial control point, not just an engineering formality.

The third source is an incorrect assumption about production volume. A low-volume project may not need the same tooling structure as a product expected to run for years. Comparing a tooling quotation also requires checking what is included: design review, machining, sampling, corrections, surface treatment, and maintenance. Multi-cavity tooling, interchangeable inserts, automatic ejection, and other features can improve long-term efficiency, but they also increase the initial investment. The right decision depends on expected annual volume, product life, cycle time, quality requirements, and the cost of future modifications.

Material selection should be confirmed before the mold structure is finalized. Silicone and thermoplastic materials behave differently during molding, and even materials within the same family can require different processing conditions. Hardness, shrinkage, flow behavior, heat resistance, chemical exposure, and surface requirements can all influence cavity design and processing parameters.

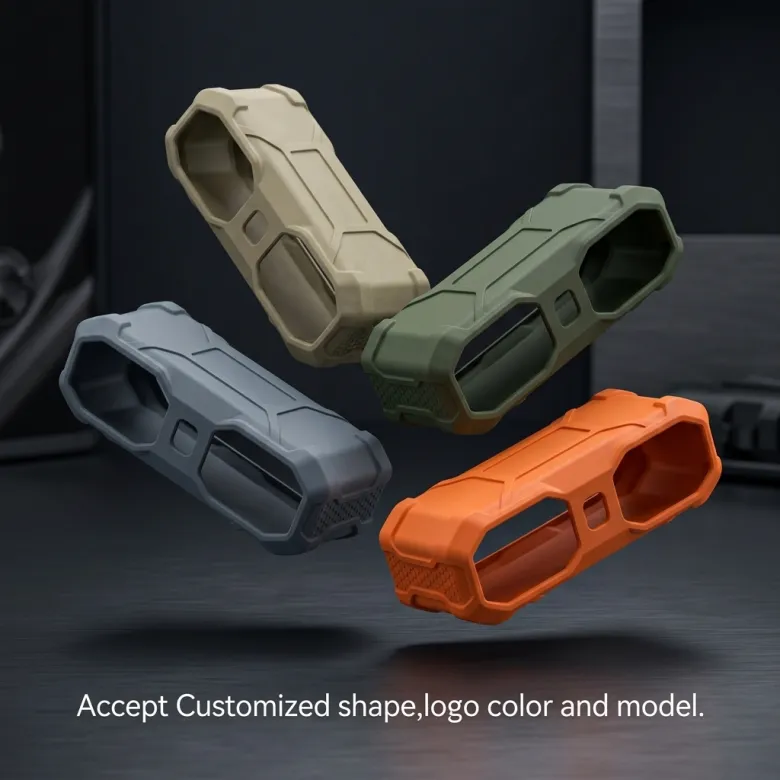

For example, a protective component made from silicone may need controlled compression around buttons, ports, or edges. A plastic housing may need internal ribs or bosses for assembly. WJM supports both Custom Silicone Solutions and Injection Molded Plastic Housings, so the tooling discussion can be connected directly to the intended production process rather than treated as a separate quotation exercise. During a mold development service, the supplier should explain how geometry, material, cavity layout, and processing requirements influence the injection mold cost.

Surface treatment is another area that can change cost. Fine textures, polished surfaces, etched marks, laser details, color-matching requirements, and secondary operations should be identified early. Late changes to appearance are particularly inefficient because the modification may involve both tooling and sample approval.

The pre-tooling review should cover at least six areas:

Product geometry: Confirm dimensions, tolerances, wall thickness, draft, openings, assembly points, and functional interfaces. Material specification: Confirm material type, hardness or grade, color, additives, and performance requirements. Tool structure: Review cavity quantity, parting line, inserts, sliders, ejector method, cooling or heating requirements, and expected maintenance. Surface requirements: Define texture, gloss, polishing, engraving, logo treatment, and other cosmetic details. Production target: Estimate annual quantity, batch size, expected product life, cycle time, and future variants. Sample approval: Establish who approves the first sample and which dimensions or functions must be checked before mass production.

Clear approval records reduce the chance that engineering assumptions become commercial disputes later. It also makes it easier for the manufacturer to explain why a tooling change is necessary and whether the change affects cost or lead time.

Tooling should be evaluated as part of the complete manufacturing system. WJM was established in 2002 and its website currently reports more than 12,000 sets of mold experience, together with a manufacturing facility of about 15,000 square meters. Its process covers product design, mold development, molding, secondary processing, quality inspection, and delivery. These figures do not mean every project requires complex tooling; they show why accumulated mold experience can help identify practical risks before fabrication.

The same principle applies to Plastic Enclosures and Custom Silicone Products. When a supplier understands the later production process, tooling decisions can be reviewed against actual molding, finishing, assembly, inspection, and packaging requirements. This is often more useful than comparing mold prices in isolation.

One reliable approach is to request a tooling review before final approval. Ask the manufacturer to identify high-risk geometry, expected modifications, material assumptions, sample criteria, and any features that may increase machining or maintenance costs. Requesting a clear change-control process is equally important. If a revision is made after tool fabrication starts, both parties should know whether it requires re-machining, a new insert, additional sampling, or a new tool.

Quality management also matters. ISO 9001:2026 describes requirements for establishing, implementing, maintaining, and continually improving a quality management system. ISO also states that more than one million ISO 9001 certificates have been issued in 189 countries. This does not guarantee that a particular mold will be successful, but it reflects the importance of controlled processes, documented requirements, measurement, and continual improvement in manufacturing.

Unexpected tooling costs are usually easier to prevent than to negotiate away after production begins. Clear drawings, confirmed materials, realistic production volumes, manufacturability review, sample approval, and documented change control create a much stronger foundation for cost control. When the tooling plan is connected with the actual silicone or plastic production process, the quotation becomes easier to understand and the project has fewer opportunities for expensive surprises.
