Can Better Mold Planning Cut Costs Without Lowering Quality?

Tooling costs usually start increasing when product requirements are not sufficiently defined before machining begins. Changes to wall thickness, draft angles, sealing areas, holes, clips, ribs, inserts, surface texture, or parting lines can require additional CNC machining, EDM work, polishing, welding, or new inserts. This is particularly important when the same mold must support both prototype approval and later production. Early engineering review can prevent a small design change from becoming a large tooling correction.

Production volume also affects the appropriate mold structure. A short-run component does not necessarily need the same cavity arrangement, automation level, or maintenance strategy as a product expected to run for several years. Multi-cavity tooling may increase the initial investment but reduce unit cost when production volume is high. The opposite can happen when the expected quantity is limited. Good precision mold manufacturing therefore starts with the production plan rather than with the mold quotation alone. Cost Factor Possible Cost Impact What to Confirm Early Product geometry Machining and tooling complexity Draft, wall thickness, ribs, clips and interfaces Material Processing and mold requirements Grade, hardness, shrinkage and temperature requirements Cavity layout Initial tooling investment Annual volume and expected product life Surface finish Additional processing Texture, polishing, engraving and cosmetic standards

Material and product structure should be reviewed together. Silicone components may require controlled compression, flexible walls, controlled parting lines, and specific demolding conditions. Plastic components can require ribs, bosses, snap-fit structures, draft angles, and controlled wall thickness. The tooling should support the manufacturing process instead of forcing the process to compensate for an unsuitable design. This is where cost efficient mold design becomes useful: the goal is to remove unnecessary complexity without removing functions that the finished product actually needs.

Surface requirements deserve the same attention. Fine textures, high-gloss areas, polished sections, laser details, or tight cosmetic standards can influence machining and finishing time. When these requirements are added after mold fabrication, the supplier may need to rework the cavity surface or create additional finishing steps. Reviewing these details together with the product drawing gives both engineering and purchasing teams a clearer view of the real mold cost optimization opportunity.

Several practical checks can reduce unnecessary tooling expenditure before the first cutting operation begins.

1. Simplify non-functional geometry. Decorative ribs, unnecessary steps, difficult internal corners, and complicated transitions should be reviewed when they do not contribute to product performance. Simplification can reduce machining time and make future maintenance easier.

2. Confirm the production quantity. Tool structure should match expected demand. Annual volume, batch size, product lifetime, and possible future versions should be discussed before deciding between simpler and more complex tooling.

3. Review critical tolerances. Tight tolerances should be applied where they affect function. Requiring every dimension to follow unnecessarily tight limits can increase machining, inspection, and correction requirements without improving the finished product.

4. Separate functional and cosmetic requirements. Not every surface needs the same finish. Identifying visible areas, sealing areas, assembly interfaces, and hidden surfaces allows the mold plan to focus resources where they matter.

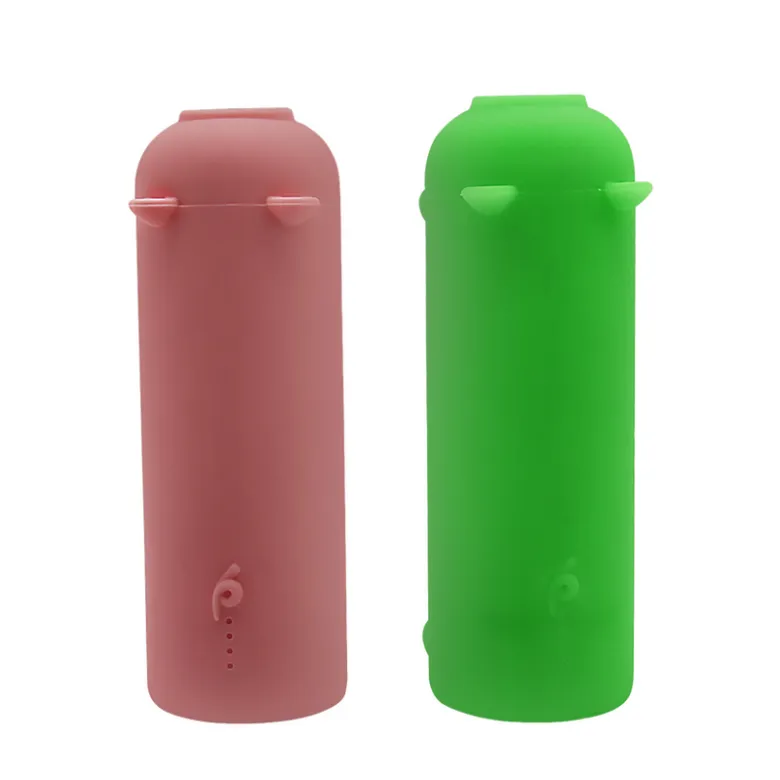

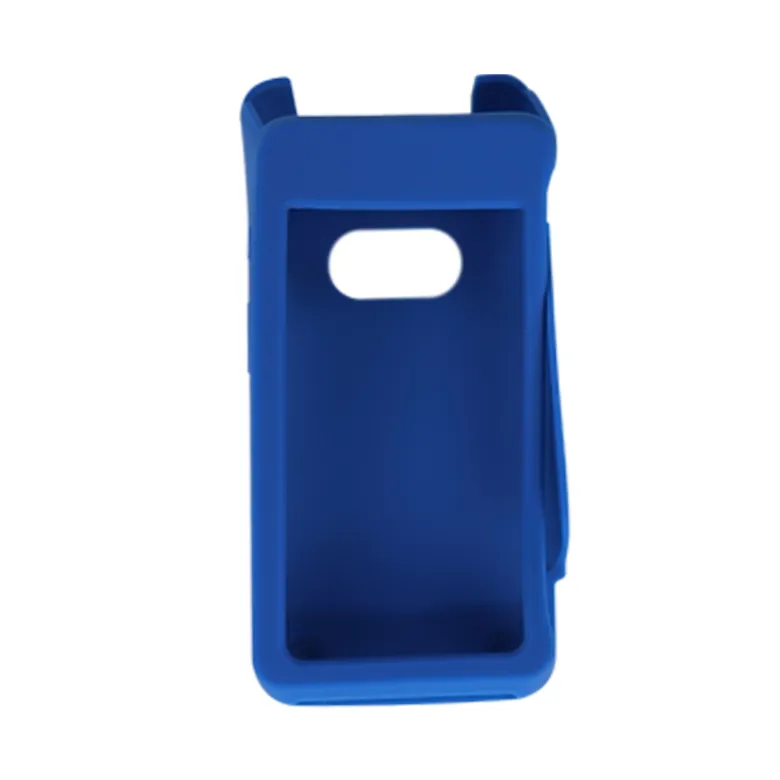

An inexpensive mold can become expensive when it produces inconsistent parts, requires frequent adjustment, or cannot support the expected production cycle. Repeated flash, dimensional drift, difficult demolding, uneven surfaces, or poor cavity balance can increase inspection and sorting work. For products such as Custom Silicone Solutions, the tooling decision should therefore be connected with material behavior, molding conditions, secondary processing, inspection, and packaging.

WJM was established in 2002 and currently describes a 15,000-square-meter manufacturing facility with capabilities covering precision tooling, precision injection molding, silicone molding, engineering development, quality control, and production. The company also states that it has accumulated more than 12,000 mold projects. These figures are relevant because tooling experience is accumulated through repeated design, machining, sampling, correction, and production cycles rather than through quotation volume alone. The company also lists ISO 9001, ISO 14001 and IATF 16949 among its manufacturing certifications. The current website supports these company-level figures and capabilities.

Quotation comparison should begin with scope rather than price. Confirm whether the quoted amount includes mold design review, machining, EDM, polishing, first samples, sample correction, testing, packaging, transportation, and future maintenance. Two quotations with different prices may represent different levels of work. The lower number is not necessarily the lower total cost if additional corrections are likely after the mold enters production.

Process control should also be considered. ISO released ISO 9001:2026 in September 2026 and states that more than one million ISO 9001 certificates have been issued to organizations in 189 countries. ISO 9001 focuses on establishing, implementing, maintaining, and continually improving a quality management system. For tooling procurement, that principle translates into documented requirements, controlled revisions, inspection records, corrective actions, and repeatable manufacturing processes.

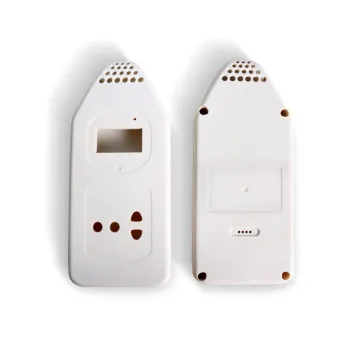

The same logic applies when comparing tooling for Plastic Enclosures, Injection Molded Plastic Housings, or other custom molded components. The quotation should explain how the proposed mold structure supports the actual production requirement, not simply how much the tool costs to manufacture.

Conclusion: Quality and tooling cost are not necessarily opposing objectives. Better results usually come from controlling design complexity, confirming material and volume assumptions, setting functional tolerances carefully, and reviewing the complete manufacturing process before tooling begins. When mold structure is planned around real production conditions, purchasing teams can pursue tooling cost reduction without turning the lowest initial quotation into a higher long-term manufacturing expense.
